It is easy to show measurements on your doors, windows and fixed installations with RoomSketcher.

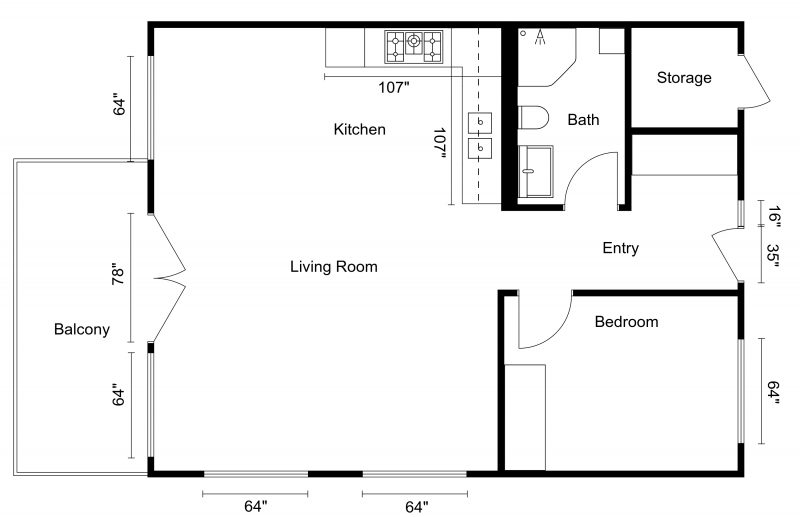

The Measuring Tape

1. Open the yellow Menu and click Always Furniture - this ensures that your furniture appears in all RoomSketcher modes.
2. Next, open Windows, etc. mode and click Symbols, Text, & Lines.
3. Locate the Measuring Tape tool.

4. Place it on your floor plan, then drag the center to move it, use the curved arrow to rotate it, and use the diagonal arrows to size it.

Tip: To see what it will look like on your 2D Floor Plan, click Menu, Preview 2D Floor Plan. This option is available to Pro and Team subscribers.

Learn more here: Preview a Floor Plan

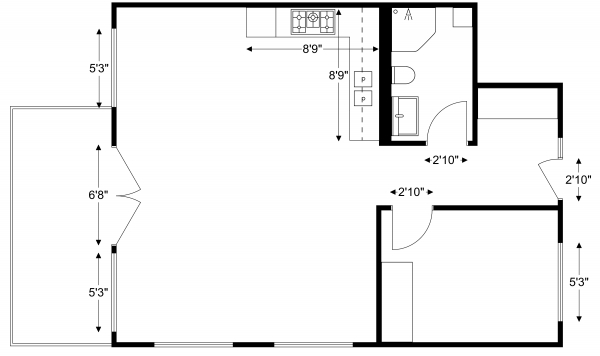

The Measure Line

1. Open the yellow Menu and click Always Furniture - this ensures that your furniture appears in all RoomSketcher modes.
2. Next, open Windows, etc. mode, and click Symbols, Text, & Lines.
3. Locate the Measure Line tool.

4. Place it on your floor plan, then drag the center to move it, use the curved arrow to rotate it, and use the diagonal arrows to size it.
5. On the right, in Properties, note its length.
6. Click the + tab and locate the Text Label tool.

7. Add it to your project and move it next to the Measure Line.
8. In the Label box on the right, type the length you noted earlier, and adjust the Font size if needed.
   Fine-tune the placement of the text box if needed.

Tip: To see what it will look like on your 2D Floor Plan, click Menu, Preview 2D Floor Plan. This option is available to Pro and Team subscribers.
