Just a click in Advanced Profile Settings lets you show or hide room names or room sizes (available for Pro and Team). You can also customize text colors and other elements. Here are some examples for inspiration.
- Example 1 – With Room Names and Sizes
- Example 2 – No Room Names or Sizes
- Example 3 – Room Names, Room Sizes, Colored Text and Measurements, Colored Kitchen Items, Furniture Labels
Example 1 – With Room Names and Sizes
To create a floor plan with these features:
- In the RoomSketcher App, draw your floor plan and add any furniture and fixed installations.

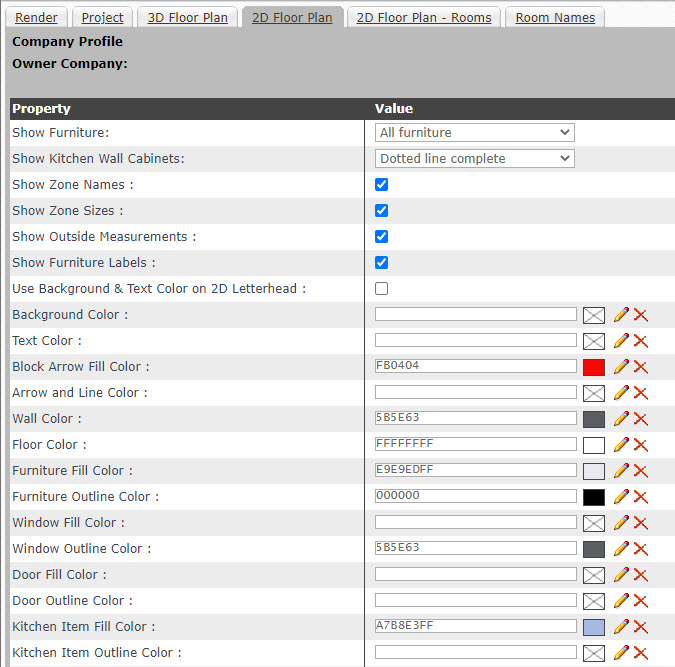

- Open Advanced Profile Settings in your RoomSketcher account on the web, and open the 2D Floor Plan tab. Here are the settings for this floor plan.
Note that Show Zone Names and Show Zone Sizes is checked. - Be sure to click Apply before leaving this tab.
- In the RoomSketcher App, Preview your floor plan, and when it's ready, Generate it.
Example 2 – No Room Names or Sizes

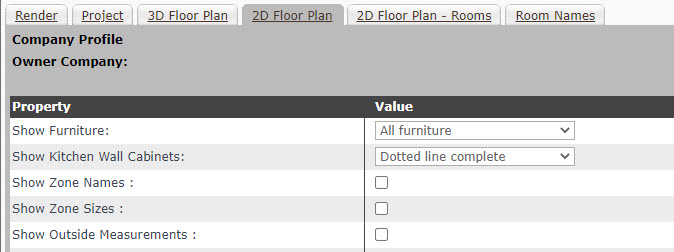

This example is the same as the floor plan above, except we chose to hide the room names or sizes.
Example 3 – Room Names, Room Sizes, Colored Text and Measurements, Colored Kitchen Items, Furniture Labels
This example shows the Room Names, and the Room Sizes in square meters. We've added measurements with the Measurement Wizards, an entrance arrow, and a furniture label (to indicate the Washer/Dryer with a W/D).
To create a floor plan with these features:
- In the RoomSketcher App, draw your floor plan and add any furniture and fixed installations.
- In Windows, etc. mode, open the Symbols, Text and Lines category. Use the Block Arrow to add an Entrance Arrow. Use a Measurement Wizard to add an outside measurement line to each wall.
- In Furniture mode, select a furniture item and add a label.
- Open Advanced Profile Settings in your RoomSketcher account on the web, and open the2D Floor Plans tab. Here are the settings for this floor plan.
Note that the Text Color is Fuchsia, the Block Arrow is Lime, the Arrow and Line Color for the measurements are blue, and the Kitchen Item Fill Color is blue. Learn more about colors here: 2D Floor Plans – Choose Colors for Your Floor Plans - Be sure to click Apply before leaving this tab.
- In the RoomSketcher App, Preview your floor plan, and when it's ready, Generate it.
