2D Floor Plans - With or Without Furniture

When you generate a 2D Floor Plan for a project, you can choose whether all the furniture in your design, part of the furniture, or no furniture is included. You can also choose a fill color and outline color on the furniture at the time you generate the floor plan.



2D Floor Plan With or Without Furniture

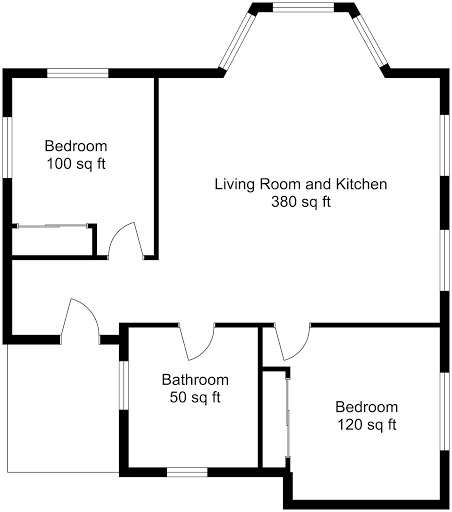

No furniture

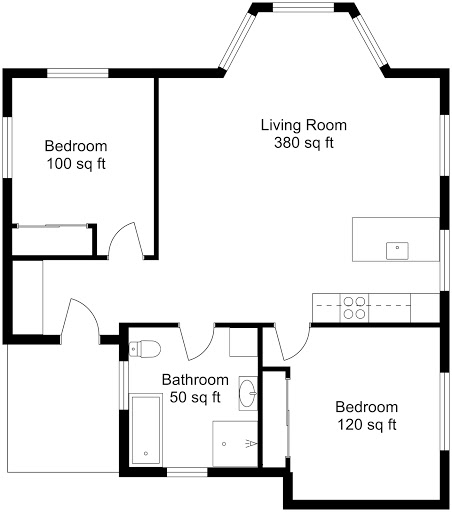

Fixed installations

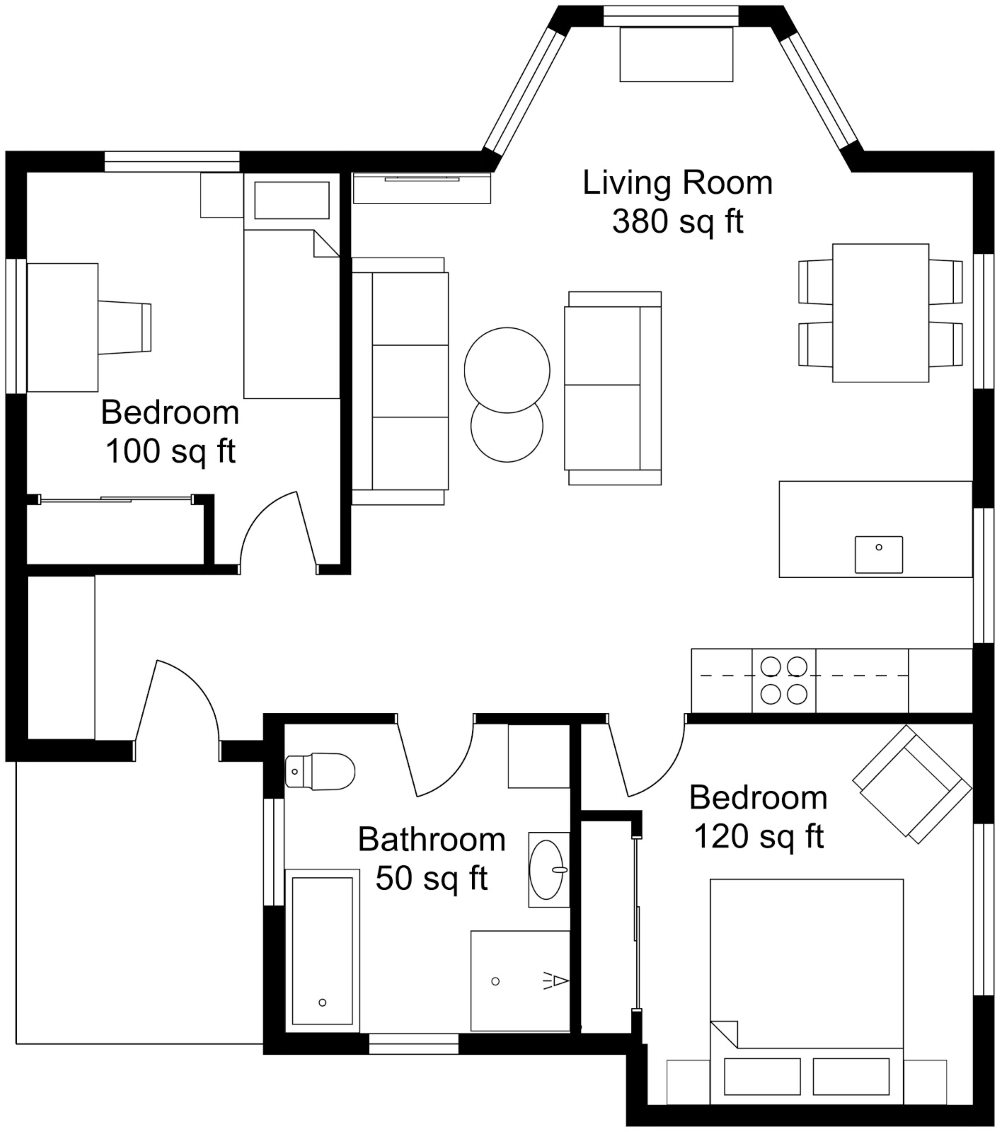

All furniture



  1. Draw up your floor plan in the RoomSketcher App including any furniture.

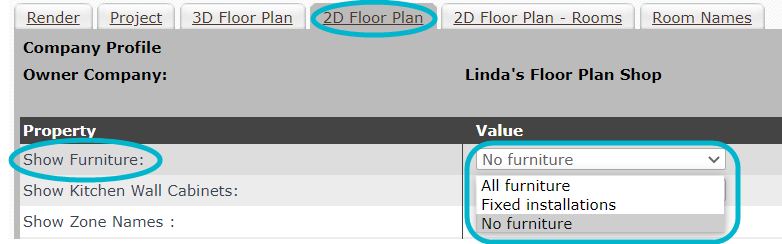

  2. In your RoomSketcher Account on the web, open Account Profile Settings.
  3. Click the 2D Floor Plans tab.
  4. To the right of Show Furniture, click either No Furniture, Fixed Installations or All Furniture.


  5. Click Apply
  6. In the RoomSketcher App, click the yellow menu in the top left and click 2D Floor Plan.

Add Furniture to Fixed Installation

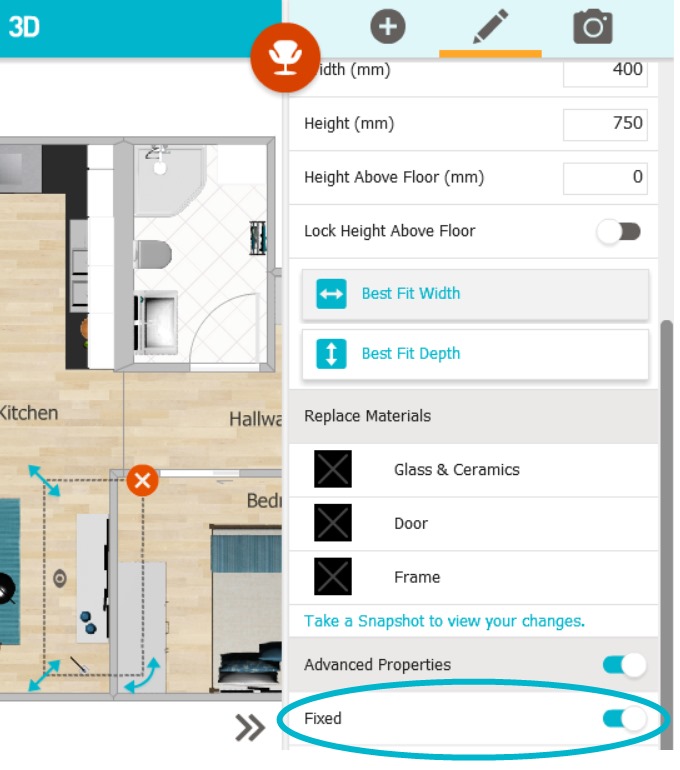

  1. To mark an item as fixed, select it in the RoomSketcher App.
  2. Click Advanced Properties on the right.
  3. Check Fixed.


  4. Generate a 2D Floor Plan, and the furniture item will be included with Fixed installations
