3D Floor Plans from Above


When you generate a 3D Floor Plan for a project, you can choose how the camera shall capture the floor plan. If you have a very small room, it can be handy to see the room directly from above. Like in this example:


To generate a 3D Floor Plan like this:

  1. Draw up your floor plan in the RoomSketcher App including any furniture.
  2. In your RoomSketcher Account on the web, open Account Profile Settings.
  3. Click the 3D Floor Plans tab.

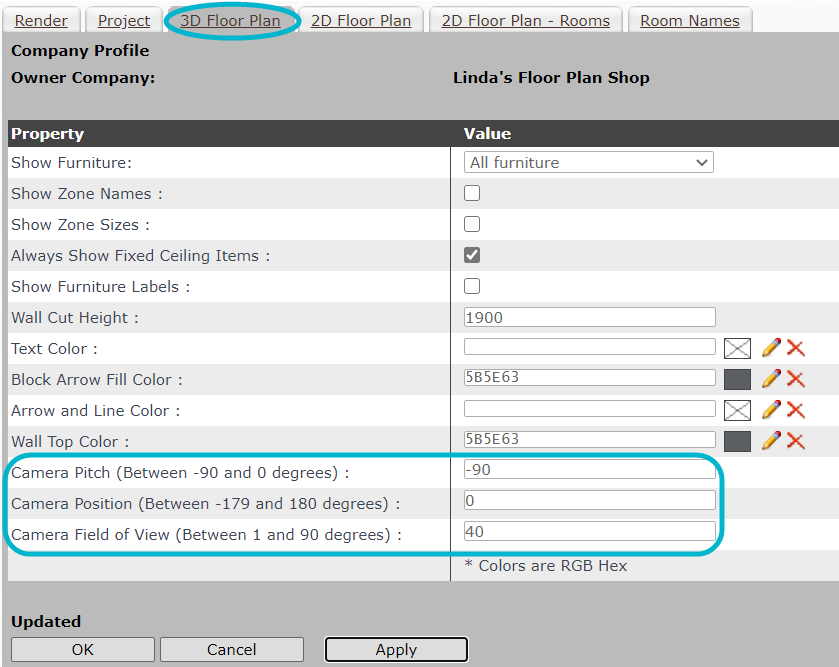

  4. Set the camera settings as shown below.


  5. Click Apply
  6. In the RoomSketcher App, click the yellow menu in the top left and click 3D Floor Plan
    Tip: You can Preview a Floor Plan prior to generating it.
