Download a Large Floor Plan

When you download a floor plan, you can choose the paper size. This allows you to print the floor plan in a variety of sizes, from small to very large. The largest option is A2, which is similar to a poster size.

Your paper size options, from the largest to the smallest, include:

Option Metric Size Size in Inches
A2 42 x 59.4 cm 16.5 x 23.4 inches
A3 29.7 x 42 cm 11.7 x 16.5 inches
Tabloid 27.94 x 43.18 cm 11 x 17 inches
Legal 21.6 x 35.6 cm 8.5 x 14 inches
A4 21 x 29.7 cm 8.27 x 11.69 inches
Letter 21.59 x 27.94 cm 8.5 x 11 inches



Example - Download the Largest Size Floor Plan

After you have drawn your floor plan in the RoomSketcher App, follow these steps:

  1. From the yellow Menu, click 2D Floor Plan or 3D Floor Plan. If you haven't already, click Generate 2D Floor Plan or Generate 3D Floor Plan.
  2. Click Save to Disk

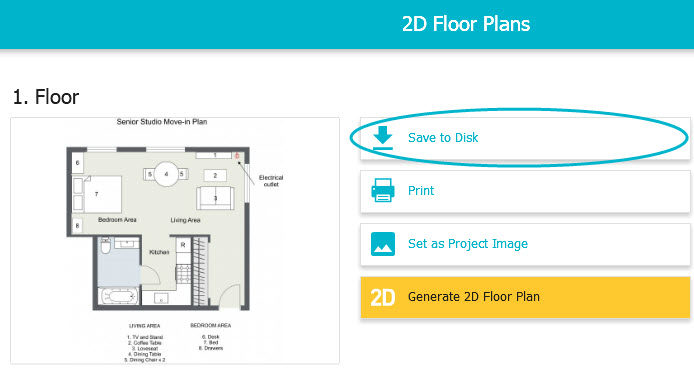

    Large Floor Plan - Save to Disk.jpg

  3. Click Web Image Full Size.
  4. For Paper Size, choose A2.

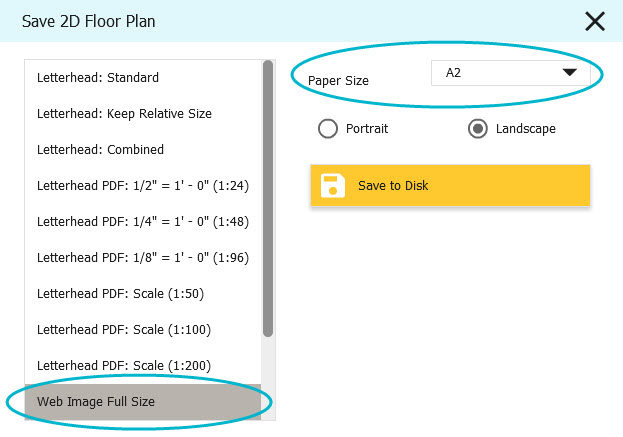

    Large Floor Plan - A2 Web Image.jpg

  5. Click Save to Disk and save the file in your chosen location.

Tip: To learn more about download formats and sizes, open Print and Download from the App and see the section Formats to Save and Print
