Create a Raised Tile Area around a Bath Tub

In this article, you’ll find tips on how to create a raised tiled area around your bathtub.


Inspiration - Bathroom -  Built-In-Tub - RoomSketcher 3D Photo.jpg

Draw a Bathroom and Add Tiles to Floor and Walls

  1. Start in Walls mode and draw the walls of your bathroom.
  2. Switch to Materials mode, and open the Tiles category to browse (or use the Magnifying glass to search for certain types of tiles such as Subway Tiles, or Green Tiles). Add your favorite tile - when asked if you want to add it to the Floor, Walls, or Both, choose Both

 Add a Bathtub and Note the Size

  1. Open Furniture mode and search for your bathtub.
  2. Drag it somewhere onto the floor plan - it doesn't have to be in the final location yet.
  3. With the bathtub selected, its Properties appear on the right. Note down the WidthDepth, and Height. In our example, the bathtub is W-1578 mm, D-750 mm and H-590 mm.

Use the Divider Tool to Draw Zones for the Raised Tile Area

  1. Switch to Walls mode.
  2. Zoom in to the floor plan.
  3. If needed, click the Add (+) tab to view the drawing buttons.

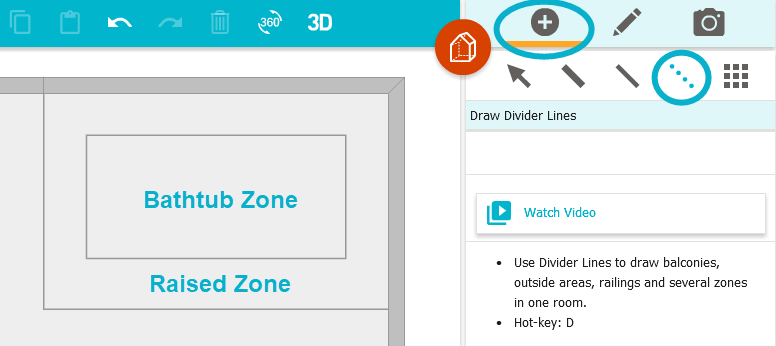

  4. Use the Draw Divider Lines button to draw up a zone that is the size of the raised tiled bathtub area (we'll call it the Raised Zone)
  5. Inside this zone, draw another zone which is where you will place the bathtub (we'll call this the Bathtub Zone). For now, draw it close to the size of the width and depth of the bathtub. We'll make it exact in the next step.

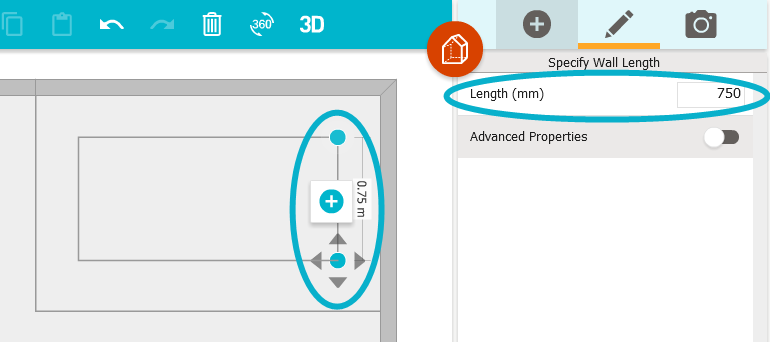

  6. The Bathtub Zone must have the exact same dimensions as the bathtub. To type exact dimensions, click the Select button and click the end of a divider line so that 4 arrows appear (note: click the end that you want the size change to occur at). On the right, type the Length to match one of the bathtub dimensions.

  7. Click the end of an adjacent divider line, to type the Length of the other dimension.
  8. To add tiles to the Raised Zone and Bathtub Zone: click on the tiled floor area in your floor plan, click the Copy  button in the top toolbar, and then click on the Raised Zone and click the Paste  button.

Adjust Height of Raised Area

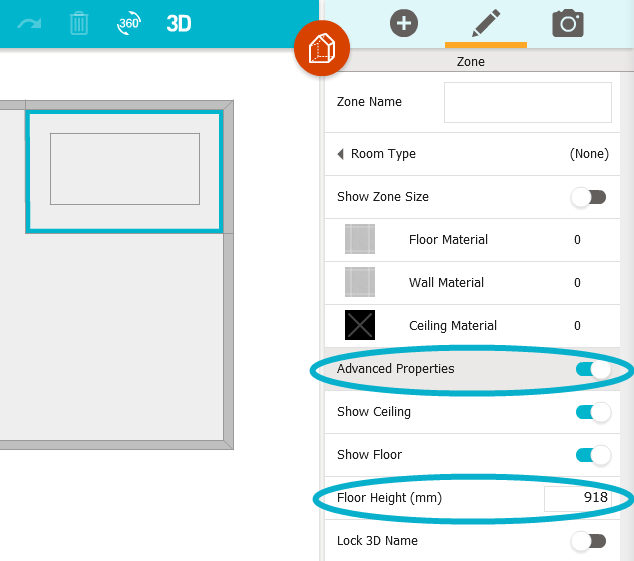

  1. Select the Raised Zone, and on the right, click Advanced Properties.
  2. Set the Floor Height to the same height as the bathtub (in our example, 918 mm).

  3. To turn off Floor Strips: Click the Levels  button and click Level Properties. Turn Floor Strips to OFF.
  4. Now open Furniture mode and drag to place the bathtub in the Bathtub Zone. Tip: If you need to, zoom in to get an accurate result.

View the Results

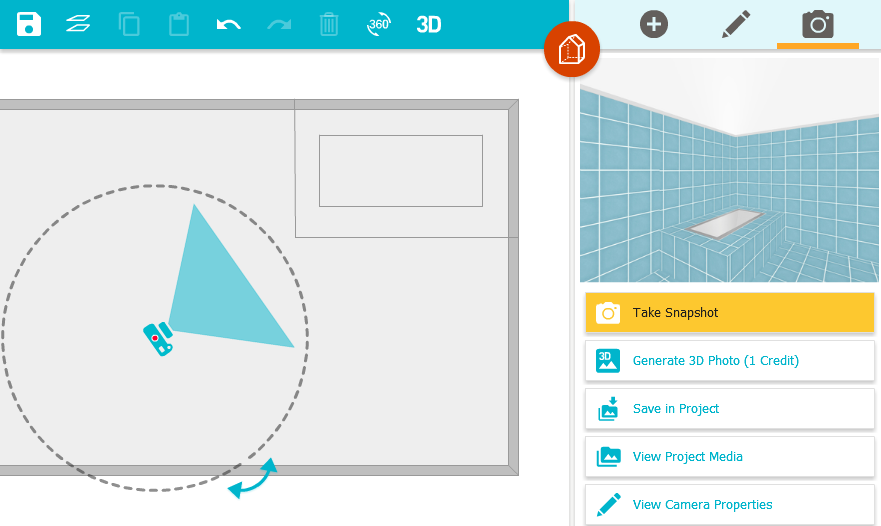

  • Take a snapshot to make sure it looks good.

    built-in tub snapshot.jpg

  • Or view it instantly with Live 3D.
  • Then decorate your bathroom with plants and pictures for that final touch!


More Bathroom Examples

Check out our Floor Plan Gallery where we have many examples of beautiful bathrooms. You can open all projects in the RoomSketcher App, save a copy and make your own edits.
