As a RoomSketcher Pro or Team subscriber you have several possibilities to give your 3D Floor Plans a special look. With the Profile Settings you can choose how the camera should capture the 3D Floor Plan.
How to Open 3D Floor Plan Profile Settings

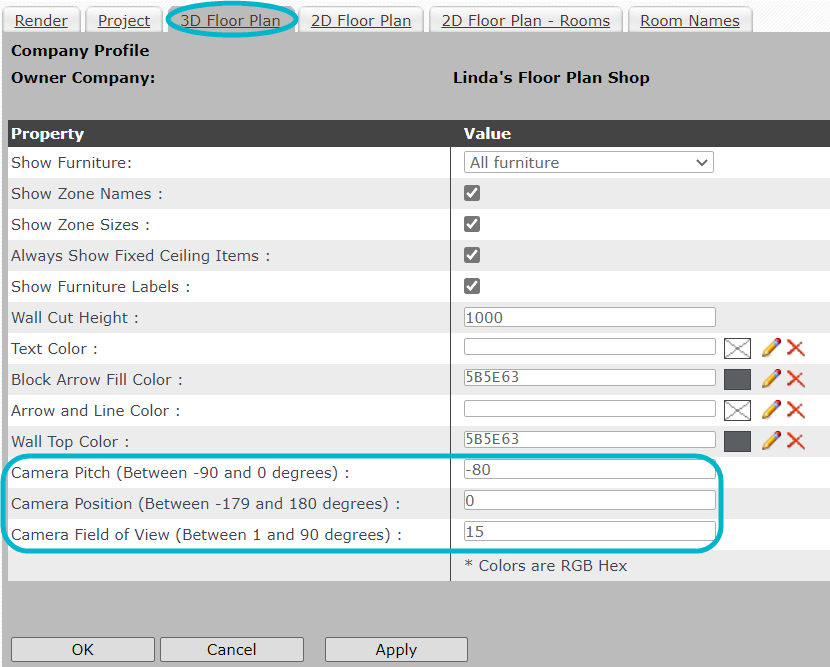

- Open Advanced Profile Settings.
- A series of tabs appears. Click the 3D Floor Plan tab.
Camera Pitch
Determines the pitch of your 3D Floor Plan. You can choose anything between -90 and 0 degree pitch. A pitch of -90 degree will move the camera down, and 0 degrees up.
Camera Pitch -90: Camera Pitch 0:
Examples:

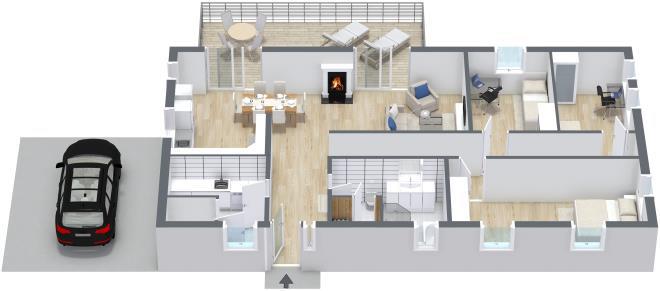

Camera Pitch -40 Degrees

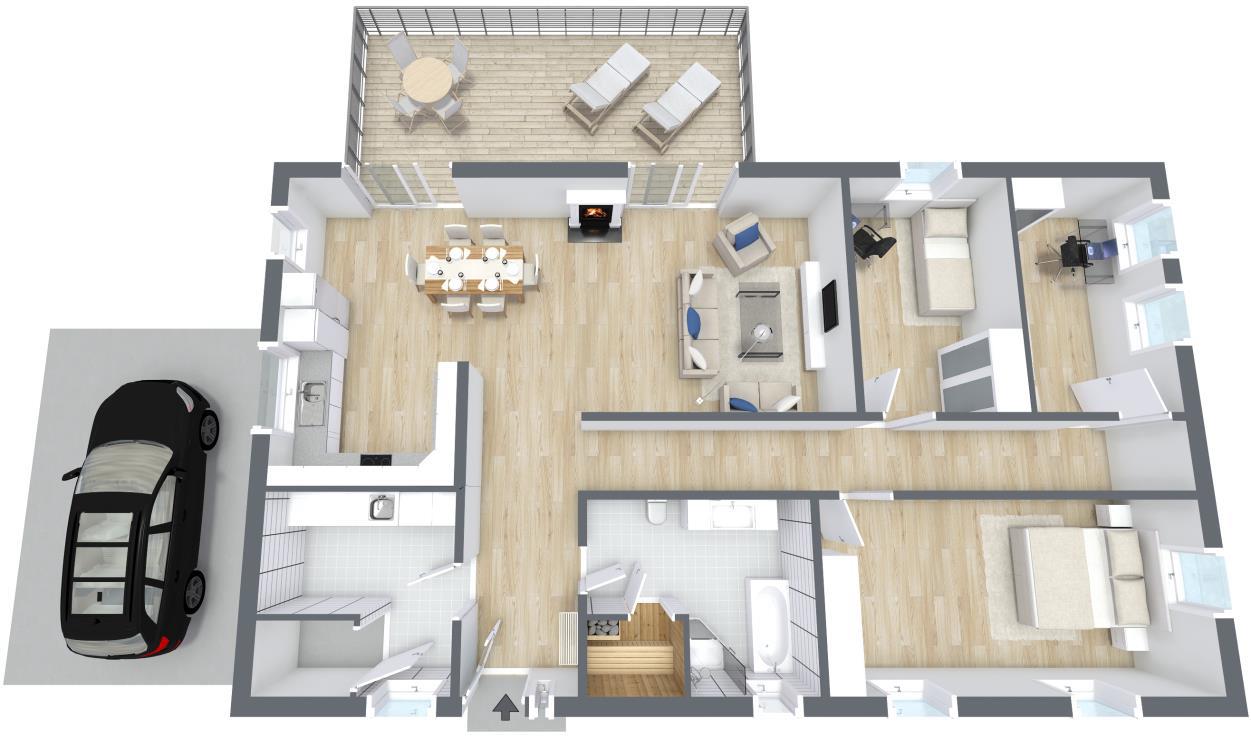

Camera Pitch -80 Degrees

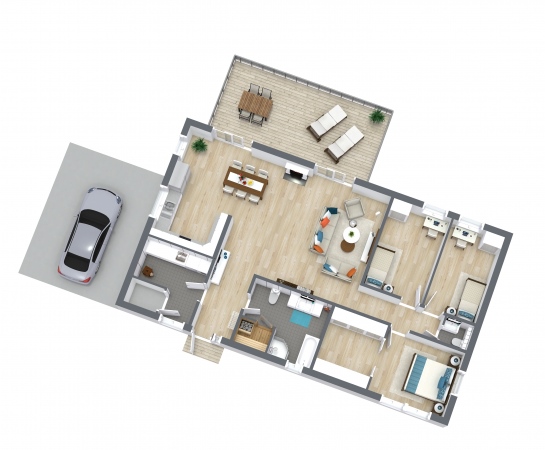

Camera Position
Determines the position of the camera when you render the 3D Floor Plan. You can choose camera positions between -179 and 180 degree.
Examples:

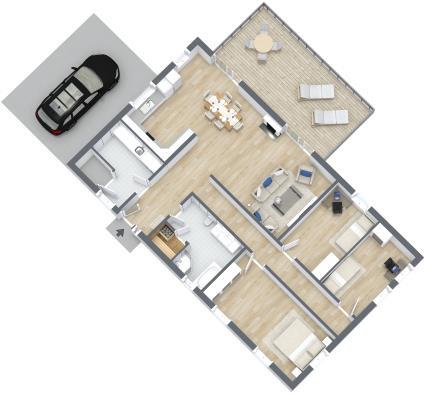

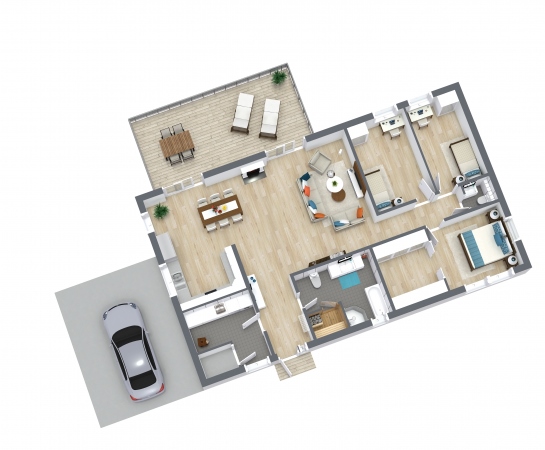

Camera Position -45 Degrees

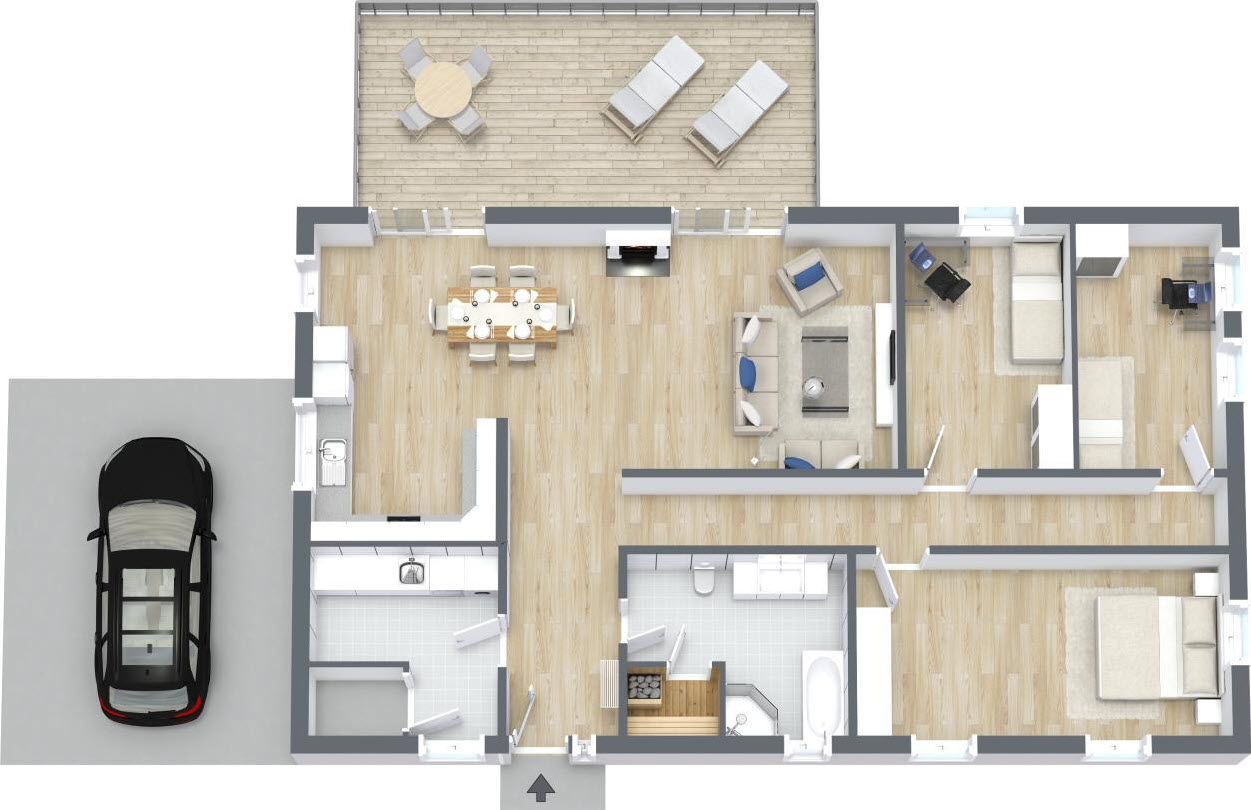

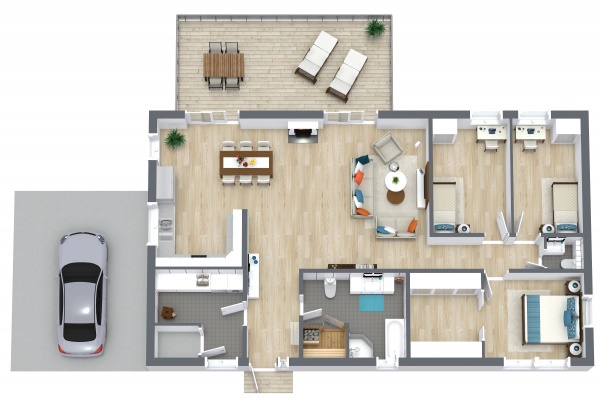

Camera Position 0 Degrees

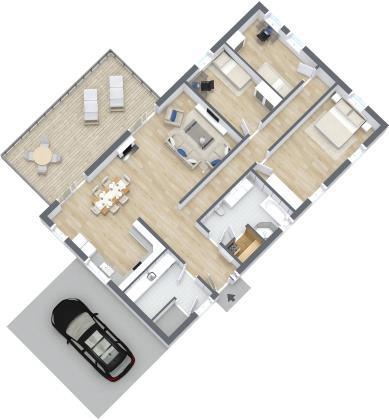

Camera Position 45 Degrees
Camera Field of View
Determines the camera field of view. You can choose between 1 and 90 degree.
Examples:
Camera Field of View 15 Degrees

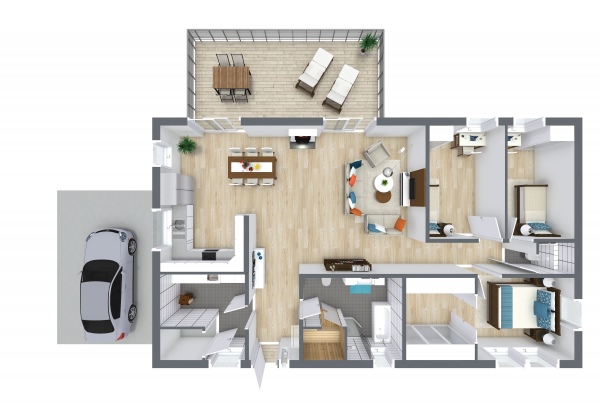

Camera Field of View 90 Degrees
