What are Styles?

When you create multiple projects, you want your floor plans to always look consistent and professional — without having to adjust settings every time.

With Styles in the RoomSketcher Web Portal, you can do exactly that. Styles let you define default settings for new projects, such as wall thickness, floor materials, and how your 2D and 3D Floor Plans are customized.

Your settings are then applied automatically whenever you create a project or generate a floor plan, giving you consistent, professional results every time.

Where Can I Find Styles?

Styles are available for Pro and Team subscribers in RoomSketcher's web portal.

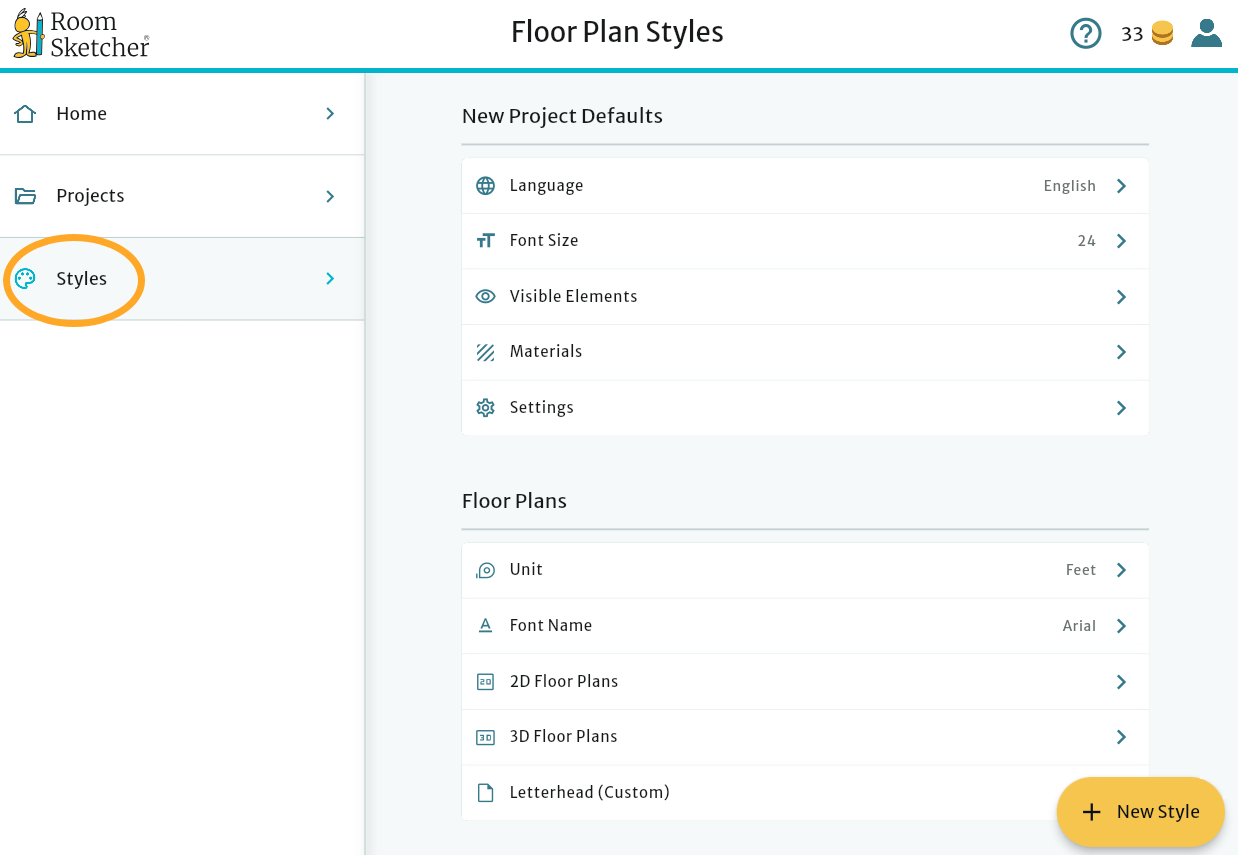

To access Styles:

1. Sign in to web portal at app.roomsketcher.com.
2. In the left menu, click Styles.

What Are the Different Options in Styles?

Under Styles, there are two sections: New Project Defaults and Floor Plans. Under New Project Defaults you set standards that will be applied when you create a new project. Under Floor Plans, you customize how your generated 2D and 3D Floor Plans look.

Below, please find more details for all of the options:

• New Project Defaults
  • Language
  • Font Size
  • Visible Elements
  • Materials
  • Settings
• Floor Plans
  • Unit
  • Font
  • 2D Floor Plans
  • 3D Floor Plans
  • Letterhead
• Can I Have More Than One Style?

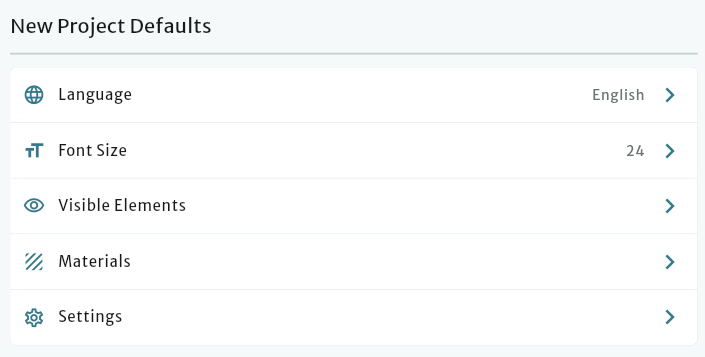

New Project Defaults

In New Project Defaults, you set up the standard settings that will be applied to every new project you create.

Here you can define:

Language

Choose between English, German, Danish, Swedish, and Norwegian. This determines the language of the room name list in the RoomSketcher App. You can read more about adding room names here: How Can I Add and Move Room Names?
Note: Create the project in web portal first, then open it in the RoomSketcher App to start editing.


Font Size

Set the default font size for room names and labels in your projects.


Visible Elements

Choose what should be shown by default:

• Room Sizes – display square feet or meters
• Ceiling and Floor Strip – add these elements to rooms
  Tip: Rooms with the type “Bathroom” never include ceiling and floor strips.

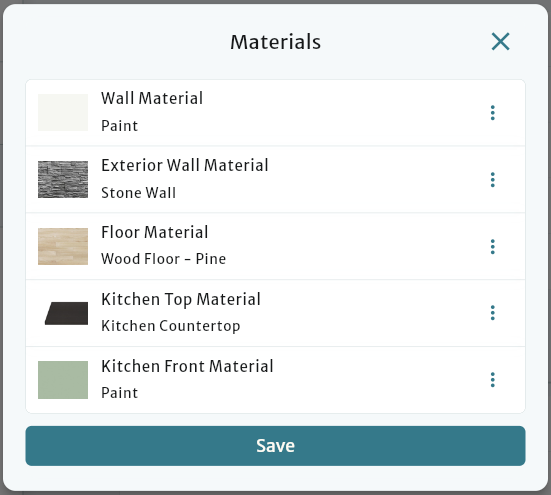

Materials

Select default materials that will automatically be applied to new projects. You can always change them later in the RoomSketcher App.
Set materials for: Walls (all interior walls), Exterior Walls, Floors (floor material in all rooms), Kitchen top (countertop material), and Kitchen Front.

To choose a material:

1. Click on a material option
2. Select Pick Material
   • Choose a category from the left (such as Carpet, Wood Floor, Paint, etc.) and the click on a material on the right to select it.
3. Or: Choose from Favorites (more about Favorites here: Use Favorites for Quick Access to Your Favorite Products)
4. Or: Choose from Recently Used (up to six recently used materials are displayed; click one of them to select it.)


Settings

Define structural defaults for your projects:

• Interior and exterior wall thickness
• Door opening angle (tip: choose 0° if you want to have closed doors)

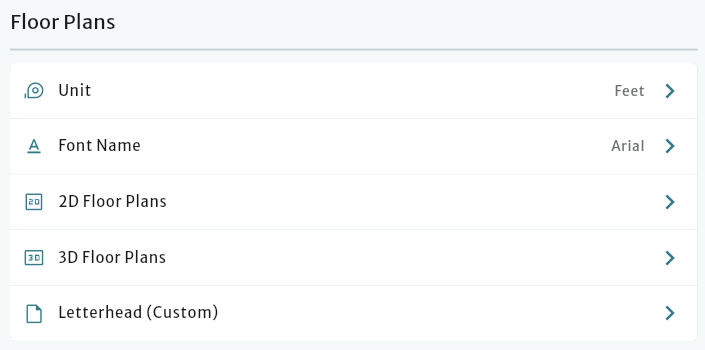

Floor Plans

Under Floor Plans, you customize how your generated 2D and 3D floor plans will look, plus how they are presented with printed or downloaded with a letterhead.


Here you can define:

Unit

Choose which if you want to use feet or meter for outside  measurements and room sizes.


Font

Set the font style for room names, labels, text, and measurements.


2D Floor Plans

Customize the appearance of your 2D Floor Plans: adjust colors, choose what elements to show or hide, and much more.

Learn more: How Can I Customize My  2D Floor Plans in RoomSketcher?


3D Floor Plans

Define how your 3D Floor Plans are presented: Choose what elements are visible, set wall cut height, adjust camera position and much more.

Learn more: How Can I Customize My 3D Floor Plans in RoomSketcher?


Letterhead

Set up how your floor plans are presented when printed or exported: Add your logo, include project information, and customize the layout of your letterhead.

Learn more: How Can I Add My Company Branding to My Floor Plans?

Can I Have More Than One Style?

Yes! As a Team subscriber, you can create several styles. Here's how:

1. Click + New Style (yellow button in the bottom right corner).
2. Enter a Name for your style.
3. Copy settings from an existing style or use the default style.
4. Click Create.

Your new Style is ready. You can now adjust all settings as described above to match your needs.
