How Can I Add Labels on Furniture?

Want to make your floor plan easier to read and understand? You can add labels to furniture to display information such as item names or notes. This is especially useful when sharing your floor plan with others or creating professional drawings.

Here’s how you can do it in the RoomSketcher App:

1. Open Furniture mode (click the red Mode button and then click Furniture).

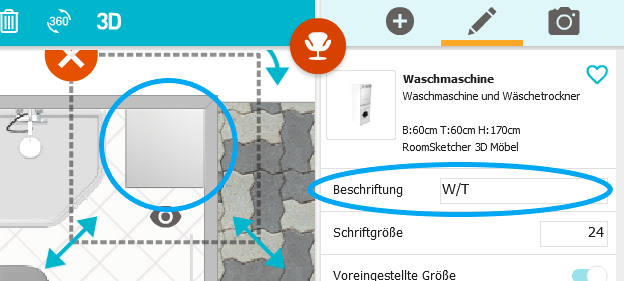

2. Click the furniture item in your floor plan to select it. Its Properties appear on the right.
3. Type the label into the Label field.

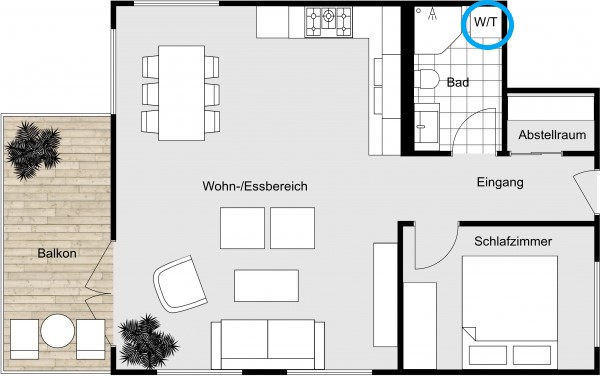

4. It’s a good idea to preview the 2D Floor Plan to see the label. See Preview a Floor Plan.
5. When you are ready, generate a 2D or 3D Floor Plan.





Good to Know

• The label won't be visible on the drawing pane. Preview or generate the floor plan to make it visible.
• If you have a Pro or Team account and want to render furniture labels on 2D Floor Plans, but not in 3D Floor Plans, you can change this in Styles. Or contact us and we help you with it.
• Typically, a label on an item of furniture is just one or two letters. If you want to add a longer text label somewhere on a floor plan, see Add a Text Label.
• To learn more about adding annotations to your floor plan, please view the video below:
