I Don't See My Changes on the Floor Plan

Have you made changes to your project, but don't see those changes in your 2D and 3D Floor Plan? Then you probably haven't re-generated your floor plans yet. Here's how to do it:

  1. In the RoomSketcher App, make your changes to your project and click Save mceclip0.png.

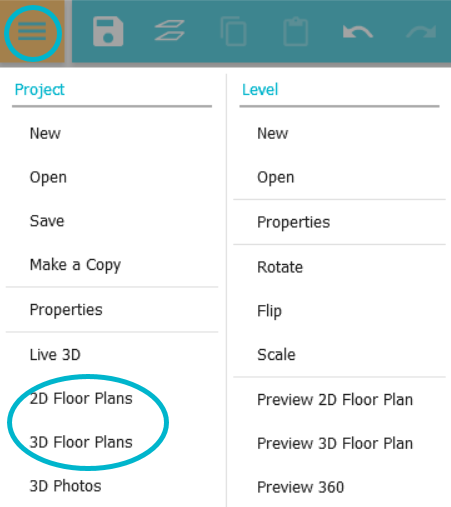

  2. Click Menu (yellow button at the top left) and then click 2D Floor Plans or 3D Floor Plans.

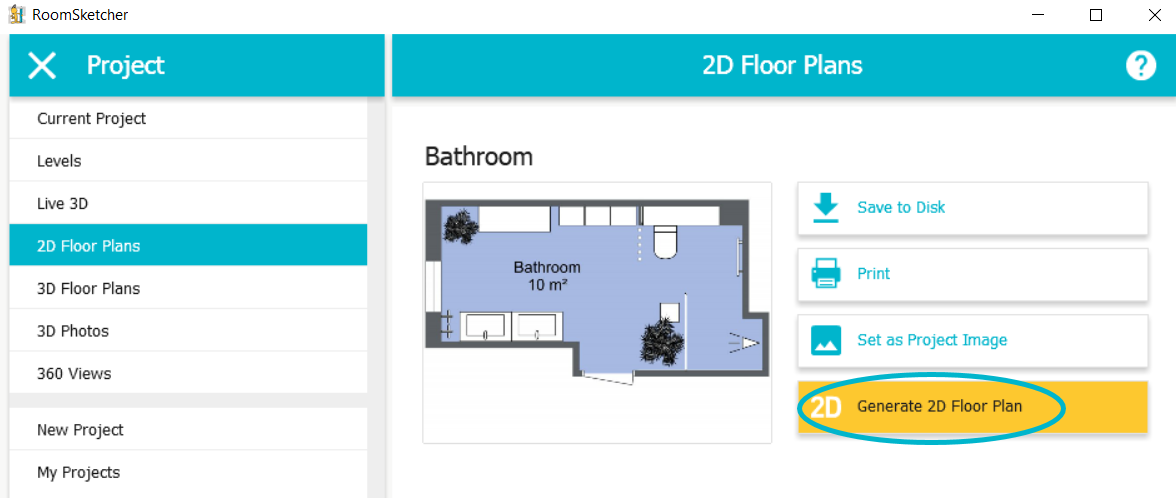

  3. The 2D Floor Plans or 3D Floor Plans page appears and you will see your previously generated floor plan. Click on Generate 2D/3D Floor Plan to re-generate your floor plan.


    While a high-quality 2D Floor Plan can generate in less than a minute, a high-quality 3D Floor Plan may take up to one hour to generate, depending on the complexity of the floor plan. The floor plan generates in the background, so you can go on with other design work while your floor plan is created.

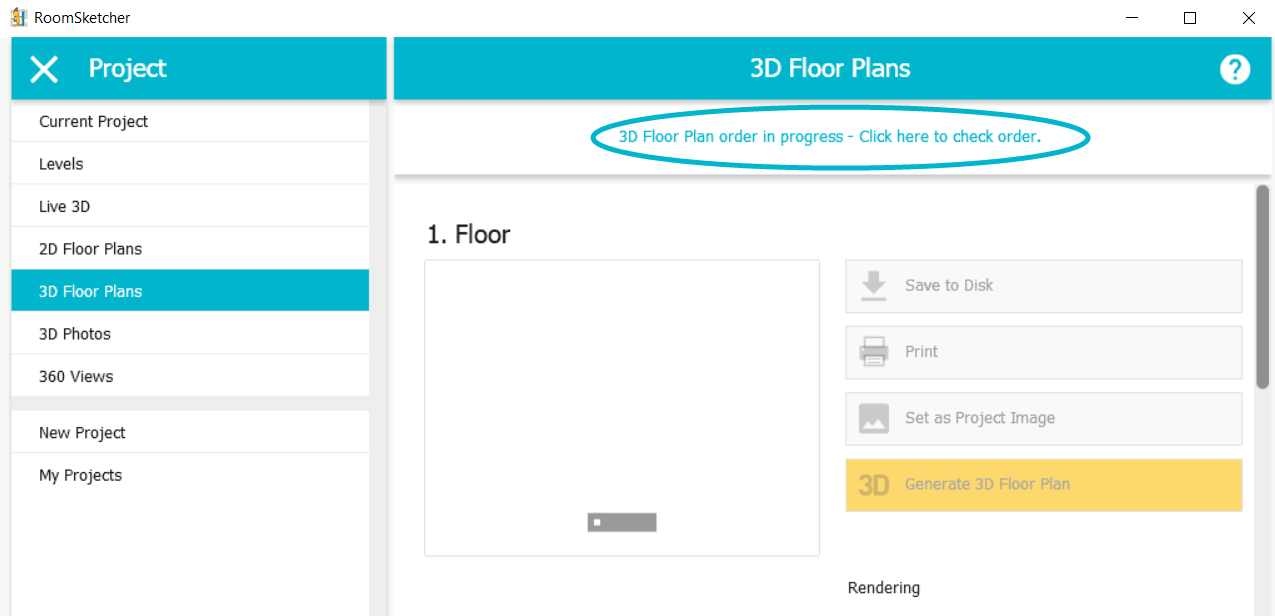

  4. To check the status, click the blue Click here to check order link at the top of the screen.



Tips

  • If you have a VIP or Pro subscription, you can preview your floor plans before you generate them. Learn here how: Preview a Floor Plan
  • RoomSketcher Pro subscribers can generate all of a project’s 2D and 3D Floor Plans plans with just one click: Generate All Floor Plans
